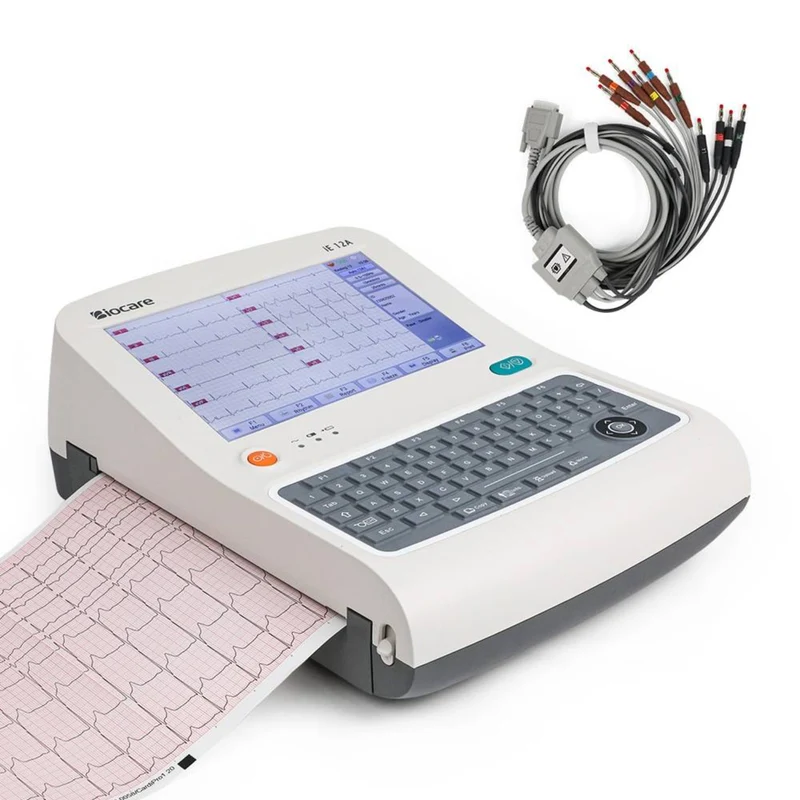

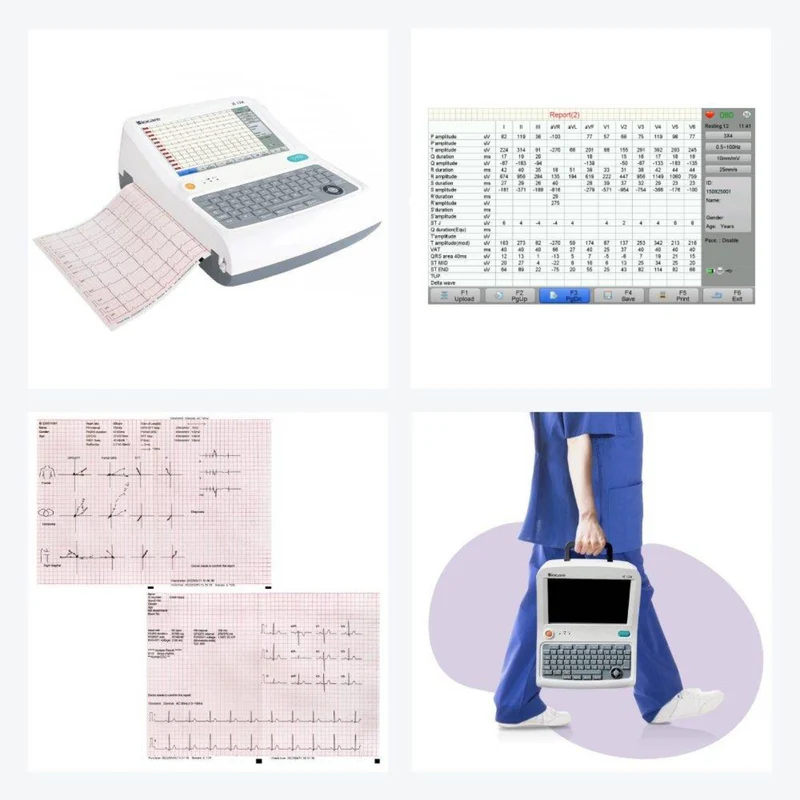

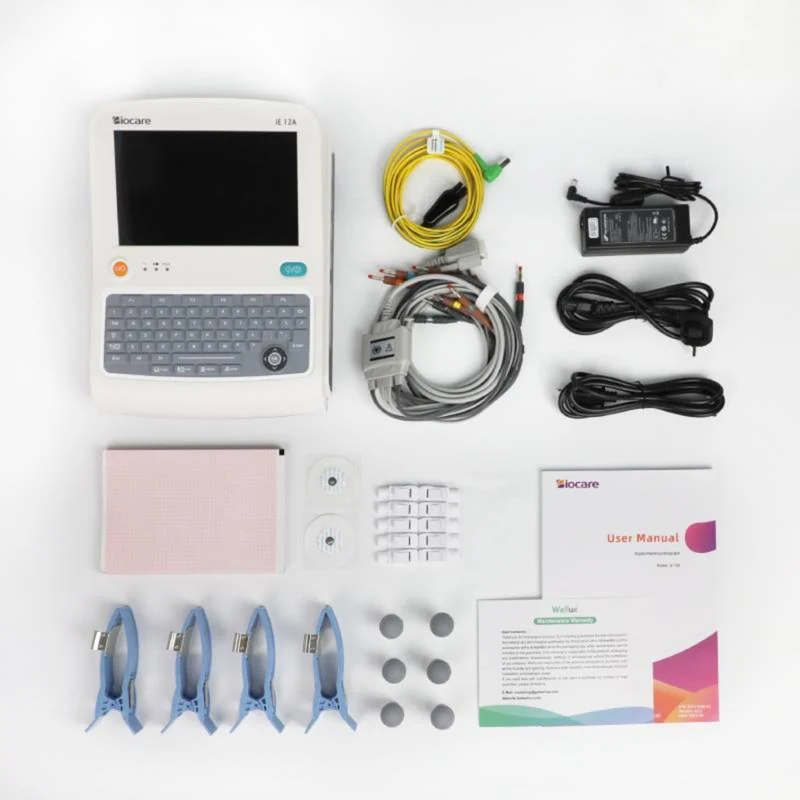

Checkme iE12A 12-Channel 12-Lead ECG Machine

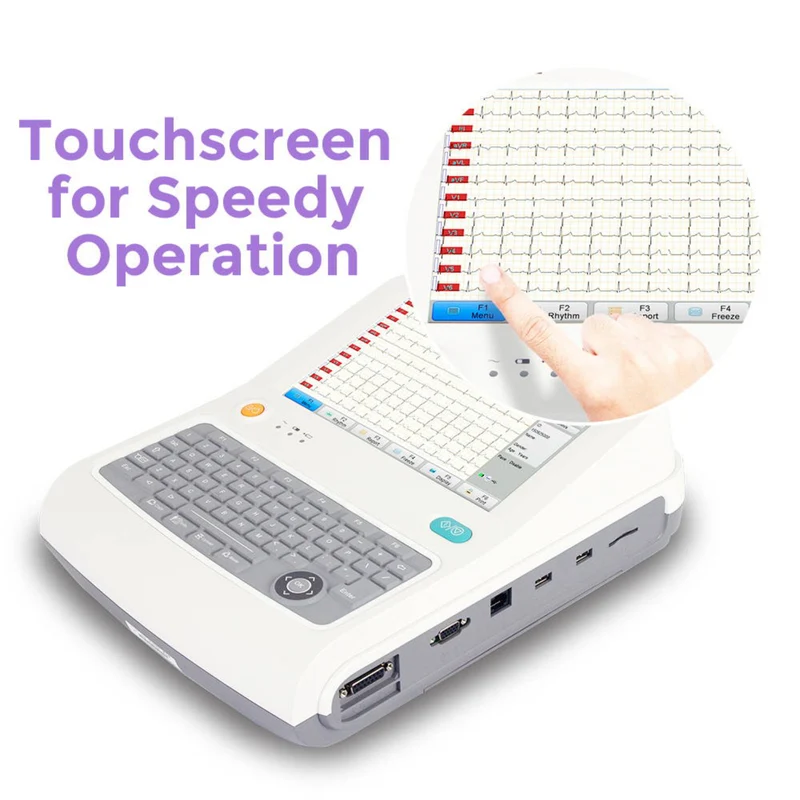

➤8.9-inch TFT LCD touch screen with 1280 x 768 resolution, 15-degree tilt design, supports full keyboard input and shortcut key navigation for easy operation.
➤Supports standard 12-lead, Nehb, Cabrera and Frank lead modes, providing a comprehensive display of ECG activity and enhancing the diagnostic accuracy of heart diseases.
➤Supports heart rate variability analysis with acquisition time of 10~24 seconds and waveform display time within 300 seconds.
➤High-pass filtering (0.01 Hz): accurately detects weak ECG signals and ensures accurate ST segment measurement.
➤Low-pass filtering (250 Hz): Suitable for users of all ages, built-in pediatric-specific analysis module.
➤30 bpm to 300 bpm, automatic report printing when arrhythmia is detected.

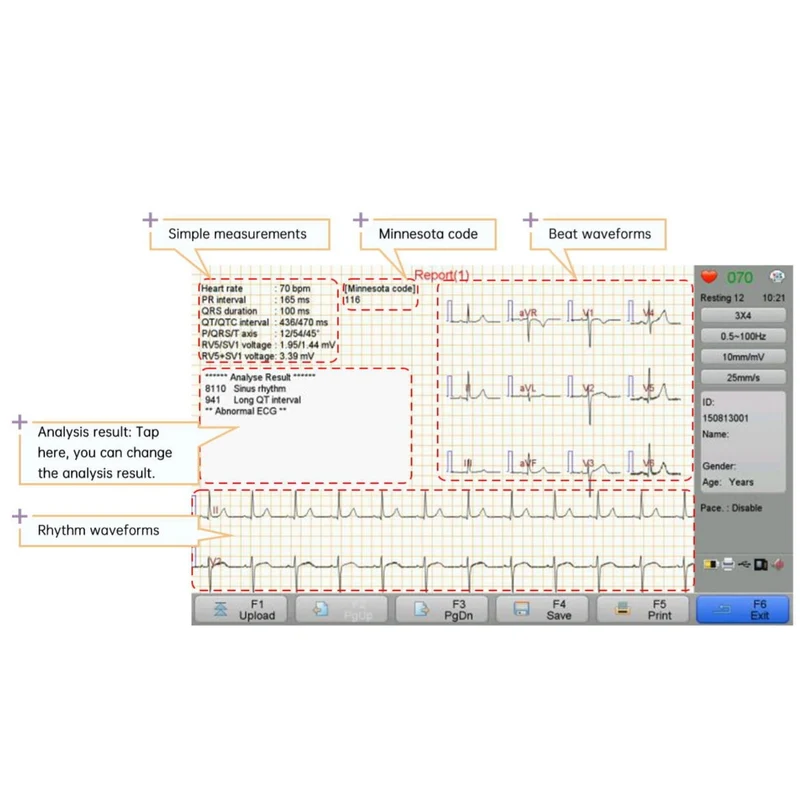

➤Single Rhythm Mode (30-300 seconds) and Triple Rhythm Mode (30-100 seconds per lead): measurements of ventricular rate, PR interval, QRS time frame, QT/QTC interval, P/QRS/T axis, RV5/SV1 amplitude, etc.
➤24-bit A/D conversion, sampling rate 8000 times/sec/channel.
➤Common mode rejection ratio (CMRR): >110dB (AC filter on); >100dB (AC filter off).

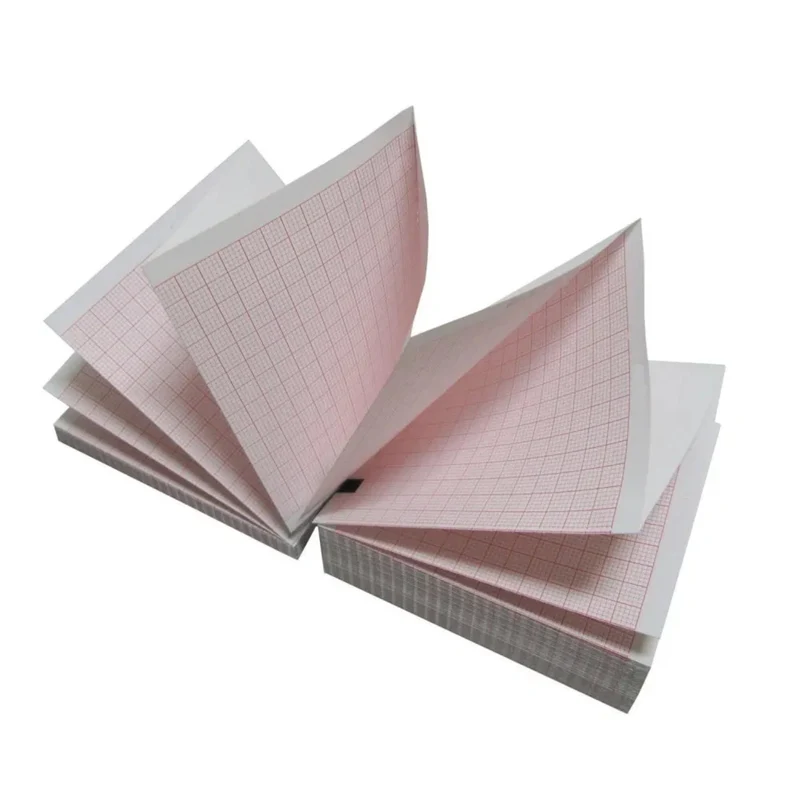

➤Use thermal paper (Z-fold paper, 210mm x 140mm - 140P), preview and then print after measurement.
➤Print speed: 5mm/s to 50mm/s adjustable.
➤Print format: 3×4, 3×4+R, 3×4+3R, 6×2, 6×2+R, 6×2+3R, 12, 12+R, 12+3R.
➤Waveform 1:1 ratio display, grid lines in line with professional evaluation standards.
➤Built-in lithium battery: 14.8V, 4400mAh, 4 hours charging can work continuously for 3 hours.
➤AC power supply: 100V-240V, 50Hz/60Hz, 80VA.
➤Supported formats: ECG, XML, JPEG, DICOM, PDF.
➤Data Transfer: Connect with Biocare ECG-1000 software via SD card, USB 2.0, LAN, compatible with Windows XP/Win7/Win8/Win10/Vista 32/64 bit systems.
➤Support WIFI, Bluetooth, mobile network connection, support TCP, FTP, HL7 protocols through WIFI or mobile network, realize efficient data transmission and collaboration.
